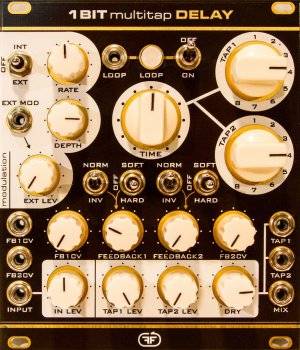

FEEDBACK Modules released 1BIT Multitap Delay (Eurorack)

FEEDBACK Modules released 1BIT Multitap Delay an adaptation of classic 1bit delays from the 80s to eurorack with many interesting add-ons.

Tech specs:

  • width 22HP
  • 50mm depth behind the panel with power cable installed
  • 3 cv inputs : FB1 CV, FB2 CV, EXT MOD
  • 3 cv level pots : FB1 CV, FB2 CV, EXT LEV
  • 1 signal input : INPUT
  • 1 gate input : LOOP
  • 9 control pots : IN LEV, TAP1 LEV, TAP2 LEV, DRY, FEEDBACK1, FEEDBACK2, TIME, RATE, DEPTH
  • 2 tap select switches (8pos) : TAP1, TAP2
  • 3 on-on switches : feedback1 NORM/INV, feedback2 NORM/INV, loop ON/OFF
  • 3 on-off-on switches : feedback1 eq SOFT/OFF/HARD, feedback2 eq SOFT/OFF/HARD lfo modulation EXT/OFF/INT
  • 1 push momentary switch: LOOP
  • 3 outputs : TAP1, TAP2, MIX
  • standard 10 pin euro power +12V / -12V
  • power consumption +12V 230mA , -12V 85mA

More info here: FEEDBACK Modules | 1BIT Multitap Delay
