SOMA laboratory announced Pulsar-23 at Superbooth

SOMA laboratory announced Pulsar-23 at Superbooth, a organismic drum machine that is currently in development at Soma. It has a semi-modular structure and consists of 23 independent modules:

– 4 drum channels: Bass drum, Bass\Percussion, Snare drum, Cymbals\Hi-Hat
– 4 envelope generators with the unique ability to generate a sustain for the drum channels, turning them into noise\drone synthesizers.
– 4 independent loop recorders with the option for individual clocking. They record triggering events, not audio.
– Clock generator with an array of dividers as a very powerful tool for rhythm synthesis.
– Wide range LFO (0.1 – 5000Hz) with variable waveform.
– Shaos – a unique pseudo-random generator based on shift registers with 4 independent outputs, sample and hold and other cool features.
– FX processor with CV control incl. CV control of the entire DSP’s sample rate.
– Distortion.
– 2 CV-controlled gates.
– 2 CV-controlled VCAs.
– 2 controllable inverters.

Also, it has MIDI control and synchronization and a lot of smaller modules such as 3 assignable attenuators and 2 dynamic CV sensors for CV generation etc.

In general, there are 52 knobs, 11 switches and over 100 inputs and outputs for patching, Eurorack integration, external mixing and processing, live circuit bending!

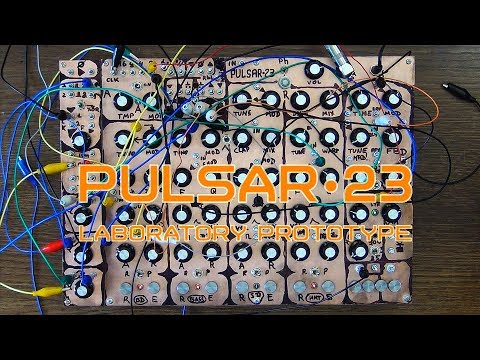

Here you can see the demo video of the laboratory prototype of PULSAR-23. It does not have the final look, the enclosure or the final panel design. The design will be developed later. Also, some minor features may change and some control options will be added. I’ve done the development of the main sound design and circuitry, and now I would like to introduce the project to the world. The most important things – the sound, the structure, the philosophy – are done.
